Westlake
Sound Transit is studying the following station alternatives in Westlake.
- Tunnel 5th Avenue Station (associated with the 5th Avenue and Harrison Alternative) (Preferred alternative)
- Tunnel station under 5th Avenue between Pine Street and Pike Street
- Tunnel 6th Avenue Station (associated with the 6th Avenue and Mercer Alternative)
- Tunnel station under 6th Avenue between Pine Street and Olive Way
View the Station Planning Progress Report for more details (9 MB).

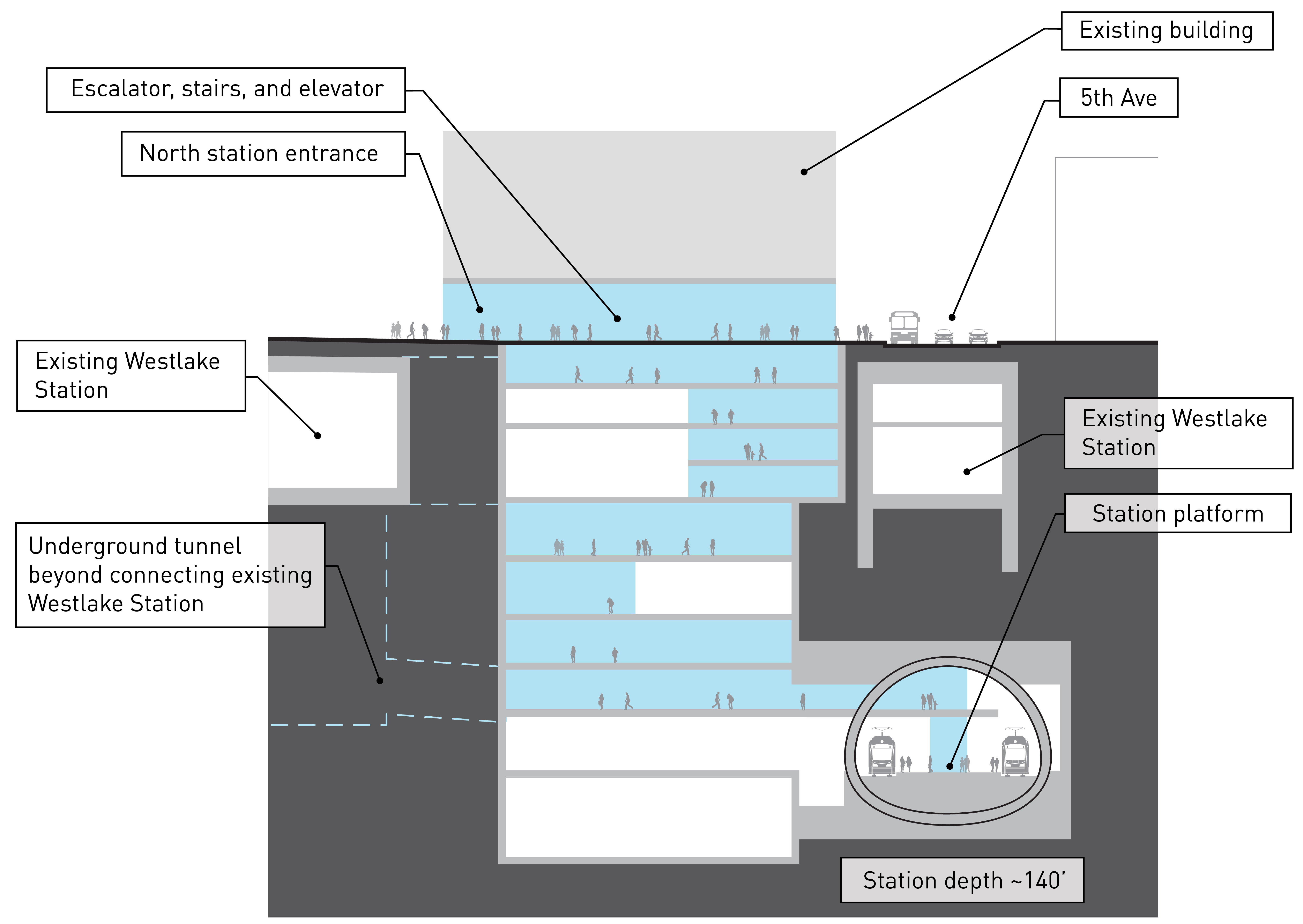

Tunnel 5th Avenue Station (associated with the 5th Avenue and Harrison Alternative) (Preferred alternative )

The text below describes the image above

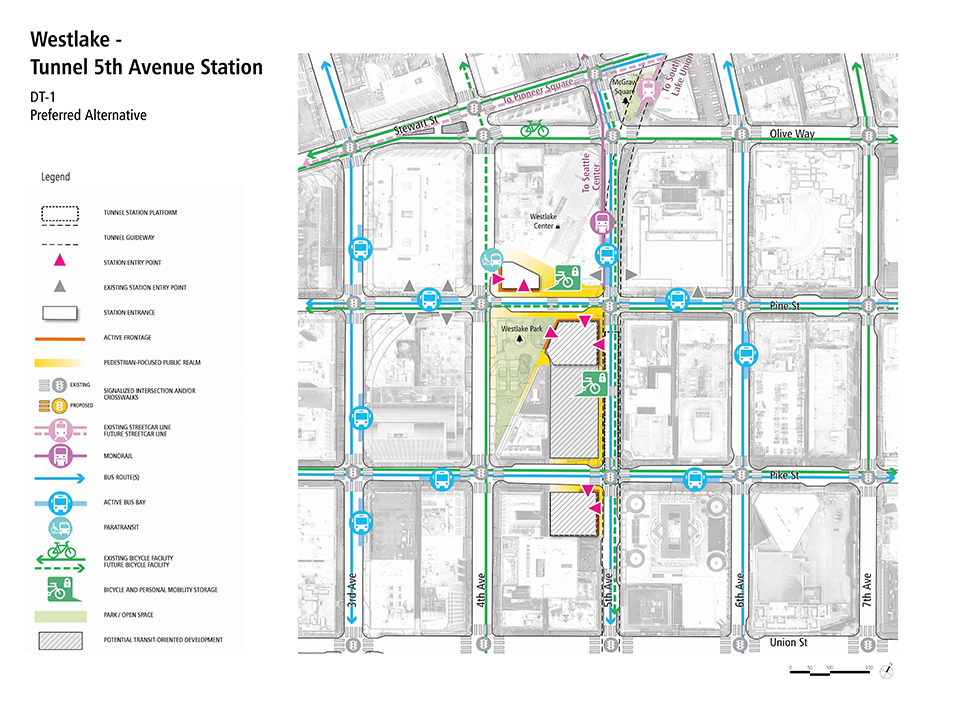

Map of the Westlake – Tunnel Fifth Avenue Station alternative with boundaries of Olive Way to the north, Seventh Avenue to the east, Union Street to the south, and Third Avenue to the west. The tunnel guideway for this new station runs north and south under Fifth Avenue with a station platform located between Pike Street and Pine Street. Station entry points for this station alternative include two entrances on the northwest corner of the Fourth Avenue and Pine Street crossroad, three entrances on the southeast corner of Fifth Avenue and Pine Street, and two entrances on the southeast corner of the Fifth Avenue and Pike Street crossroad. A pedestrian-focused realm will be implemented around the potential station. The borders of this realm are located along each side of Roy Street between Fourth Street and Fifth Street to the north, on the west side of Fifth Avenue between Pine Street and Pike Street to the east, on each side of Pike Street between Fourth Street and Fifth Street to the south, and on the east side of Fourth Avenue to the west. Existing crosswalks to the proposed Westlake – Tunnel Fifth Avenue station area are located at the crossroads of Fourth Avenue and Pine Street, Fifth Avenue and Pine Street, Fourth Avenue and Pike Street, and Fifth Avenue and Pike Street. The streetcar runs north and south on Fifth Avenue North with a stop located south of Stewart Street between Fifth Avenue and Sixth Avenue and the monorail runs north and south on an elevated track above Fifth Avenue. Current bus routes run east and west on Pike Street and Pine Street, and north and south on Third Avenue, Fifth Avenue, and Sixth Avenue. Active bus bays include a location on the east side of Third Avenue north and south of Pike Street and north of Pine Street, a location on the west side of Fifth Avenue North north of Pine Street, on the east side of Sixth Avenue south of Pine Street, and east and west on the south side of Pike Street between Third Avenue and Fourth Avenue and between Fifth Avenue and Sixth Avenue. Active bus bays run east and west on the north side of Pine Street between Third Avenue and Fourth Avenue, and on Pine Street between Fifth Avenue and Sixth Avenue. A paratransit stop is located on the northeast corner of the Fourth Avenue and Pine Street crossroad adjacent the northwest station entrance. Existing bicycle facilities exist north and south on Fourth Avenue up to Pine Street, and east and west on Pike Street, Pine Street, Olive Way, and Stewart Street. Future bicycle facilities exist north and south on Fourth Avenue north of Pine Street, and north and south on Fifth Avenue, and north and south on Seventh Avenue north of Pike Street. Existing bicycle and personal mobility storage is located on the west side of Fifth Avenue between Pine Street and Pike Street and on the north side of Pine Street between Fourth Avenue and Fifth Avenue. Parks and public space are located at Westlake Park on the southeast corner of the Fourth Avenue and Pine Street crossroad and at McGraw Square on the southeast corner of the Stewart Street and Fifth Avenue crossroad. A potential transit-oriented development is located on the west side of Fifth Avenue between Pine Street and Pike Street, and on the southwest corner of the Fifth Avenue and Pike Street crossroad.

Pedestrian Access – Key features
- West entrance on the northeast corner of the 4th Avenue and Pine Street intersection
- North entrance on the southwest corner of the 5th Avenue and Pine Street intersection
- South entrance on the southwest corner of the 5th Avenue and Pike Street intersection
- Underground access between existing and proposed Westlake stations
Key
Station location
Existing LINK Station
Station entry area
Existing LINK entry area

Bike Access - Key features
- Bike lanes on Pine Street (westbound), Pike Street (eastbound) and 4th Avenue (northbound)
- Planned bike facility on 5th Avenue (southbound)
- Bike lockers and racks adjacent to the north station entrance (access from 5th Avenue); bike racks adjacent to the west station entrance (access from Pine Street)
Key
Station location
Existing LINK Station
Bike storage area
Existing bike route
Planned bike route

Transit Access – Key features
- One of three stations where riders can transfer between existing and proposed light-rail transit lines
- Streetcar at McGraw Square (one block away from the station)
- Future bus route on Pine Street (westbound) and Pike Street (eastbound)
- Bus routes on 5th Avenue and 6th Avenue
Key
Station location
Existing LINK Station
Bus stop
Bus route
Streetcar stop
Streetcar route

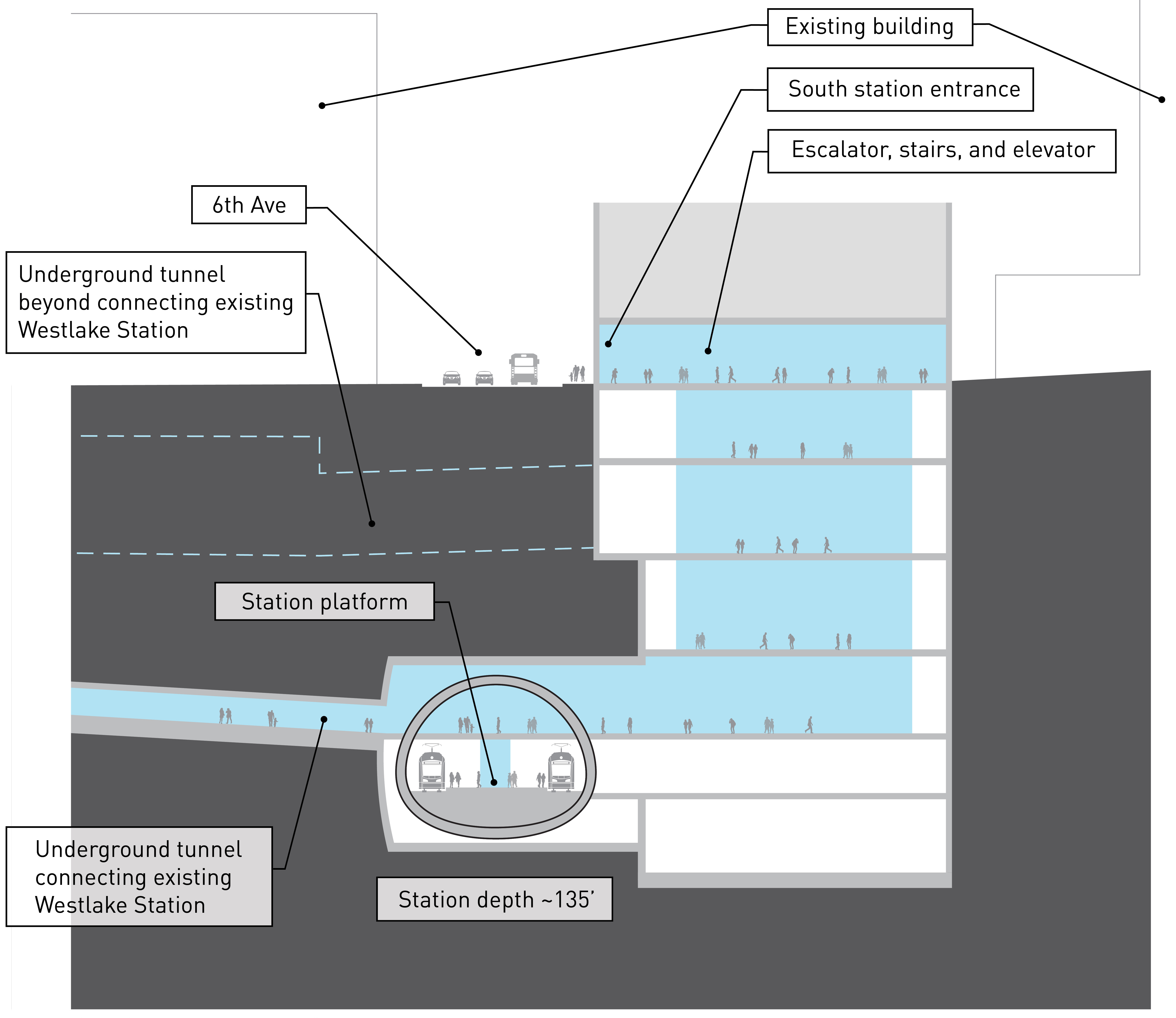

Tunnel 6th Avenue Station (associated with the 6th Avenue and Mercer Alternative)

The text below describes the image above
Map of the Westlake – Tunnel Sixth Avenue Station alternative with boundaries of Stewart Street to the north, Eighth Avenue to the east, Pike Street to the south, and Fourth Avenue to the west. The tunnel guideway for this new station runs north and south under Sixth Avenue with a station platform located between Olive Way and Pine Street. Station entry points for this station alternative include three entrances on the northwest corner of the Sixth Avenue and Olive Way crossroad and two entrances on the southeast corner of the Sixth Avenue and Pine Street crossroad. Pedestrian-focused realms will be implemented around the potential station entrances. The borders of these realms are located along southeast corner of the Sixth Avenue and Pine Street crossroad and the block between Olive Way and Stewart Street between Fifth Avenue and Sixth Avenue. Existing crosswalks to the proposed Westlake – Tunnel Sixth Avenue station area are located at the crossroads of Fifth Avenue and Pine Street, Fifth Avenue and Olive Way, Fifth Avenue and Stewart Street, Sixth Avenue and Pine Street, Sixth Avenue and Olive Way, and Sixth Avenue and Stewart Street. The streetcar runs north and south on Fifth Avenue North with a stop located south of Stewart Street between Fifth Avenue and Sixth Avenue and the monorail runs north and south on an elevated track above Fifth Avenue. Current bus routes run east and west on Pike Street and Pine Street, east and west on Stewart Street east of Fifth Avenue, and north and south on Fifth Avenue south of Stewart Street, and north and south on Sixth Avenue. Active bus bays include a location on the west side of Fifth Avenue North north of Pine Street, on the east side of Sixth Avenue south of Pine Street, and on the south side of Pike Street between Third Avenue and Fourth Avenue and between Fifth Avenue and Sixth Avenue. Active bus bays are located on the north side of Pine Street between Third Avenue and Fourth Avenue, and on Pine Street between Fifth Avenue and Sixth Avenue, and located on the north side of Stewart Street between Seventh Avenue and Eighth Avenue. A paratransit stop is located on the southeast corner of the Sixth Avenue and Pine Street crossroad adjacent the Southeast station entrance. Existing bicycle facilities exist north and south on Fourth Avenue up to Pine Street, and east and west on Pike Street and Pine Street west of Seventh Avenue, east and west on Olive Way, and east and west on Stewart Street west of Seventh Avenue. Future bicycle facilities exist north and south on Fourth Avenue north of Pine Street, north and south on Fifth Avenue, east and west on Pike Street, Pine Street, and Stewart Street east of Seventh Avenue. Existing bicycle and personal mobility storage is located on the south side of Stewart Street between Fifth Avenue and Sixth Avenue and on the southwest corner of the Olive Way and Stewart Street crossroad. Parks and public space are located at Westlake Park on the southeast corner of the Fourth Avenue and Pine Street crossroad and at McGraw Square on the southeast corner of the Stewart Street and Fifth Avenue crossroad. A potential transit-oriented development is located on the southwest corner of Sixth Avenue and Pine Street and on the block between Olive Way and Stewart Street between Fifth Avenue and Sixth Avenue east adjacent McGraw Square.

Pedestrian Access – Key features
- North entrance just east of McGraw Square streetcar station at the northwest corner of the Olive Way and 6th Avenue intersection
- South entrance on the southeast corner of the 6th Avenue and Pine Street intersection
- Underground access between existing and proposed Westlake stations
Key
Station location
Existing LINK Station
Station entry area
Existing LINK entry area

Bike Access - Key features
- Bike lanes on Stewart Street and Pine Street (westbound), Olive Way and Pike Street (eastbound) and 7th Avenue (northbound)
- Planned bike facility on 5th Avenue (southbound)
- Bike lockers and racks adjacent to the north station entrance (access from Stewart Street, Olive Way and 6th Avenue)
Key
Station location
Existing LINK Station
Bike storage area
Existing bike route
Planned bike route

Transit Access – Key features
- One of three stations where riders can transfer between existing and proposed light-rail transit lines
- Streetcar at McGraw Square (adjacent to the station)
- Future bus route on Pine Street (westbound) and Pike Street (eastbound)
- Bus routes on 5th Avenue, 6th Avenue, Pine Street and Pike Street
Key
Station location
Existing LINK Station
Bus stop
Bus route
Streetcar stop
Streetcar route
